LPG Series

LPG Pressure Hose

A product specially formulated for the conveyance of LPG gas, the hose comply to various international standard. This product is under SIRIM authentication. It is soft, flame-resistant, abrasion resistant and anti-corrosive.

Class 1 (Single Layer) & Class 2 (Double Layer) is suitable for LPG tank 15kgs and below. This type of LPG gas hose is for domestic and household use. While Class 4 is suitable for industrial use with 50kgs LPG tank. Application for Class 4 is for Restaurant, and Factory use and etc.

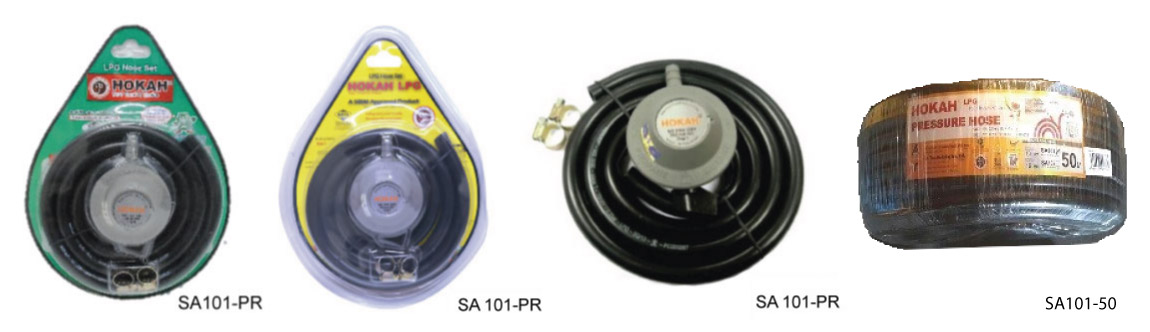

For Class 1

Product Code	Inner Diameter		Outer Diameter	Length	Working Pressure
	Inch	mm	mm	Meter	Bar
SA101-50	3/8”	10	16	50	0.2
Complete Clip & Regulator
SA101-PR	3/8”	10	16	1.5	0.2

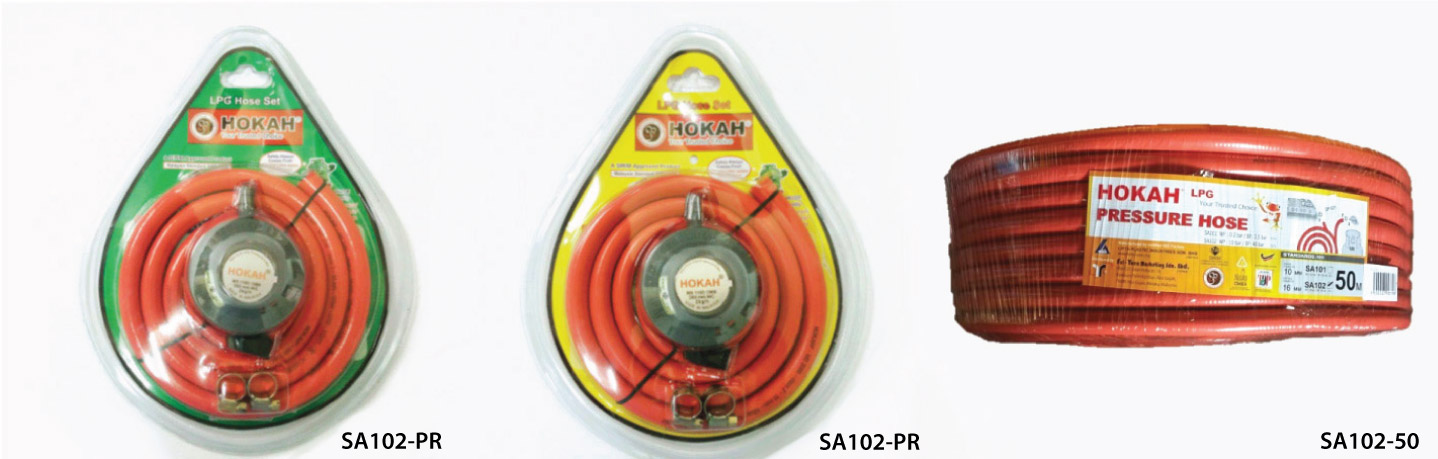

For Class 2

Product Code	Inner Diameter		Outer Diameter	Length	Working Pressure
	Inch	mm	mm	Meter	Bar
SA102-50	3/8”	10	16	50	10

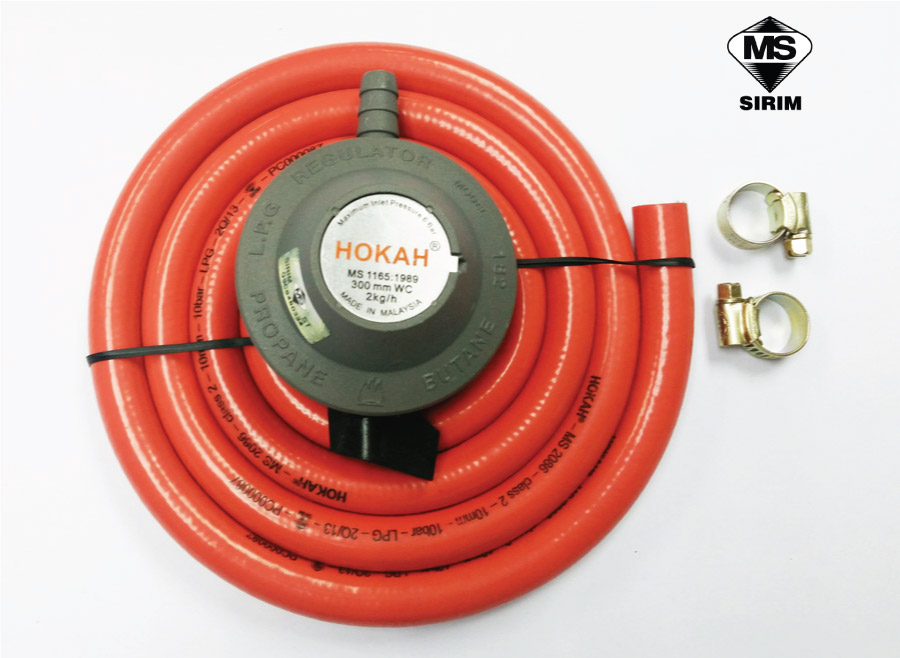

Complete Clip & Regulator
SA102-PR	3/8”	10	16	1.5	10

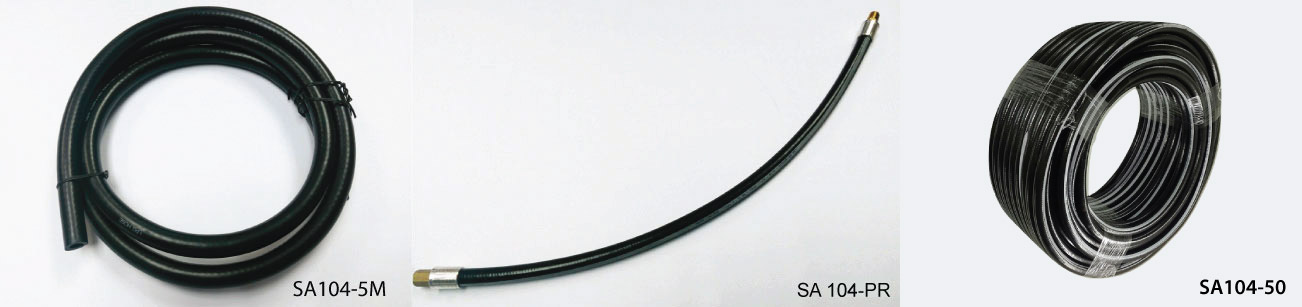

For Class 4

Product Code	Inner Diameter		Outer Diameter	Length	Working Pressure
	Inch	mm	mm	Meter	Bar
SA104-50	1/4“	6.4	16	50	20
Complete Clip
SA104-0.5	1/4“	6.4	16	0.5	20
SA104-1.0	1/4“	6.4	16	1	20
SA104-2.0	1/4“	6.4	16	2	20
SA104-3.0	1/4“	6.4	16	3	20
SA104-5.0	1/4“	6.4	16	5	20



We have the ability to produce SNI 8022:2014 as well.
